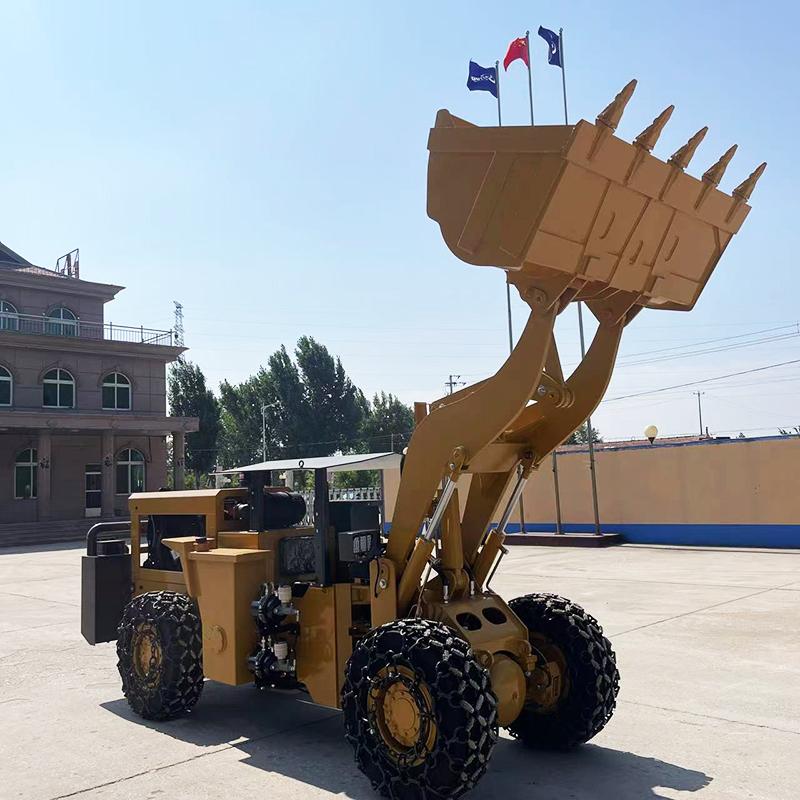

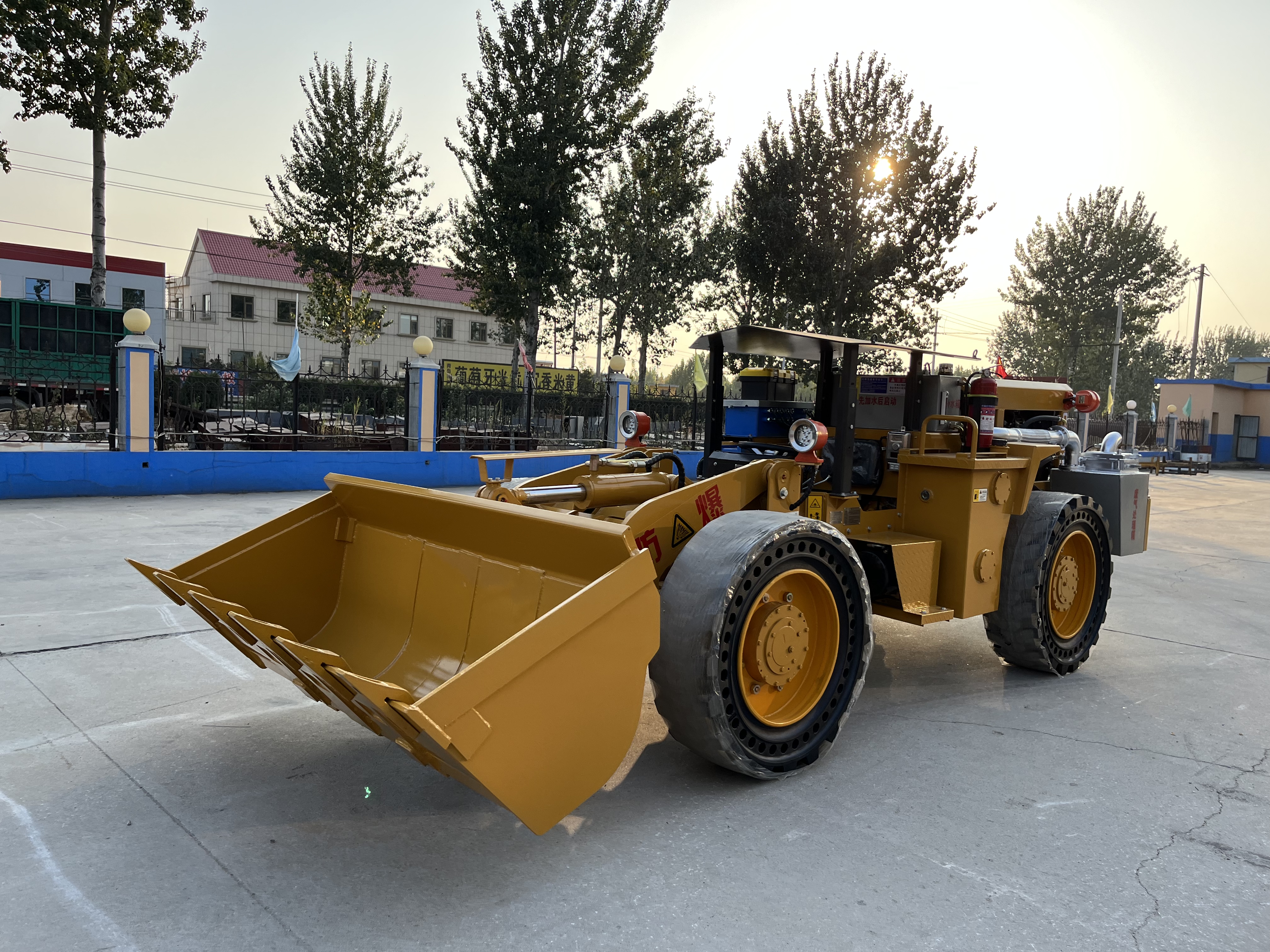

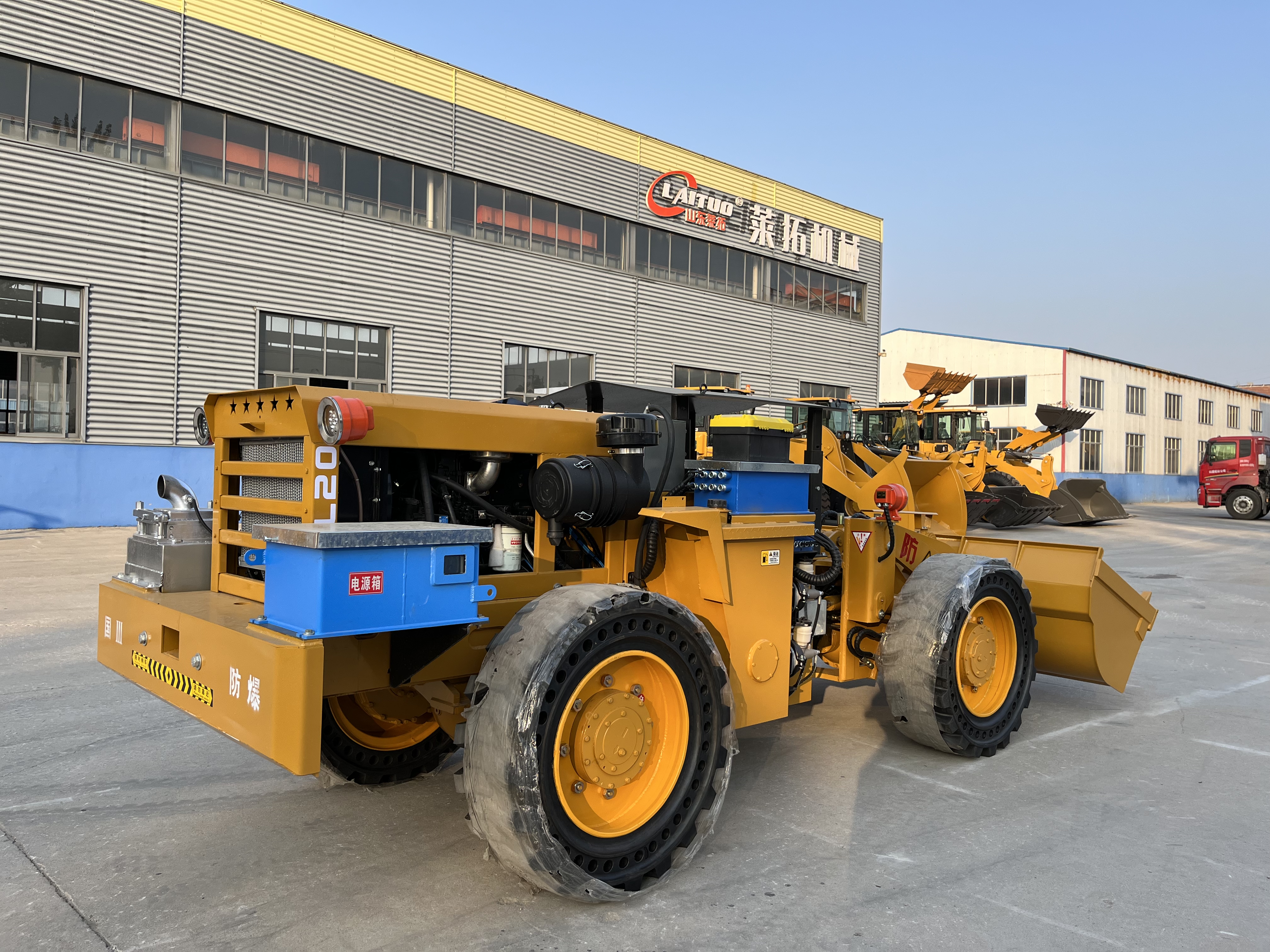

LT930U ZL20EKA Loader Mining Machines
  • LoadCapacity: 2000kgs
  • Operation weight: 7850kgs
  • Bucket capacity: 1.10cbm
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics
Product selling point

● Power system adopts top brand engine with low speed and high torque.

● Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.


● Service brake adopts Multi-disc wet brake, parking brake uses spring brake, hydraulic release.

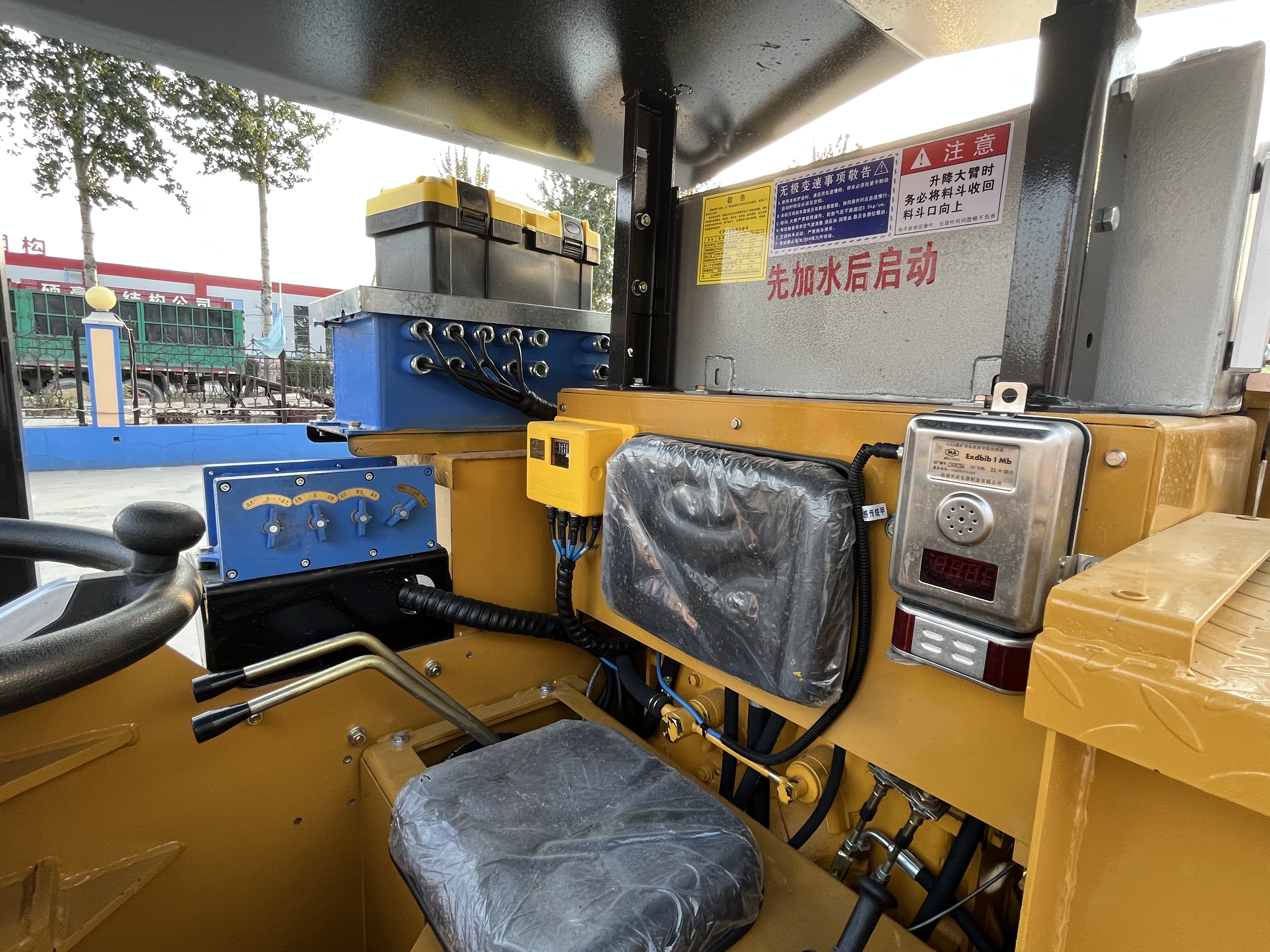

● Operating system adopts pilot control to make operation easily and work efficiently.

● Large capacity battery, high power lighting, more suitable for working in dark environment.
Parameters
Operating weight Bucket capacity Rated engine power Max.Gradeability
7000 kg 1.0m³ 68 kw 16°
Length×width×height Wheel base Maximum dumping height Tire type
5717mm×1300mm×2000mm 2870mm 2242mm 10.00-20

parameters
Product selling point

● Power system adopts top brand engine with low speed and high torque.

● Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.


● Service brake adopts Multi-disc wet brake, parking brake uses spring brake, hydraulic release.

● Operating system adopts pilot control to make operation easily and work efficiently.

● Large capacity battery, high power lighting, more suitable for working in dark environment.
Parameters
Operating weight Bucket capacity Rated engine power Max.Gradeability
7000 kg 1.0m³ 68 kw 16°
Length×width×height Wheel base Maximum dumping height Tire type
5717mm×1300mm×2000mm 2870mm 2242mm 10.00-20
