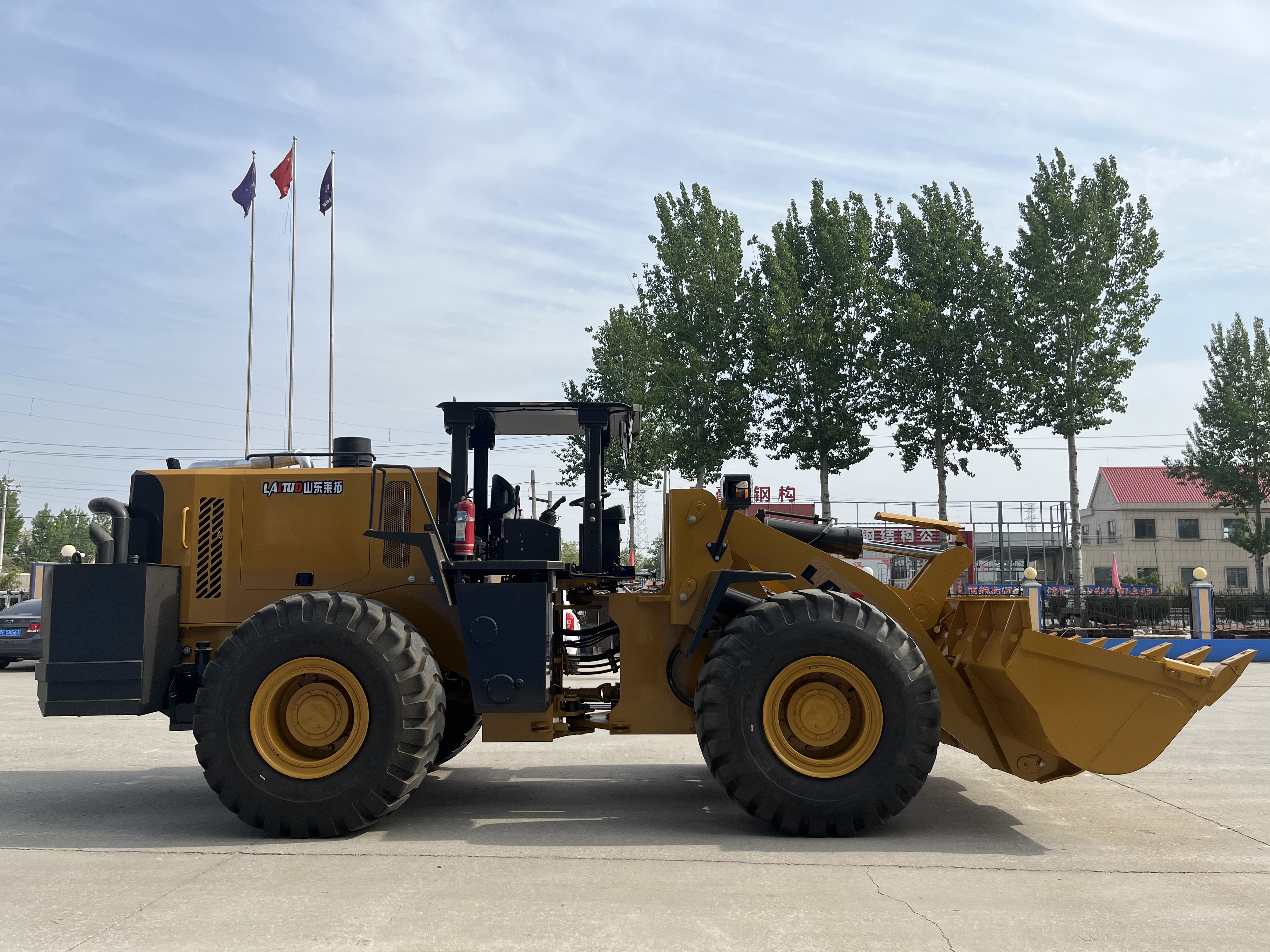

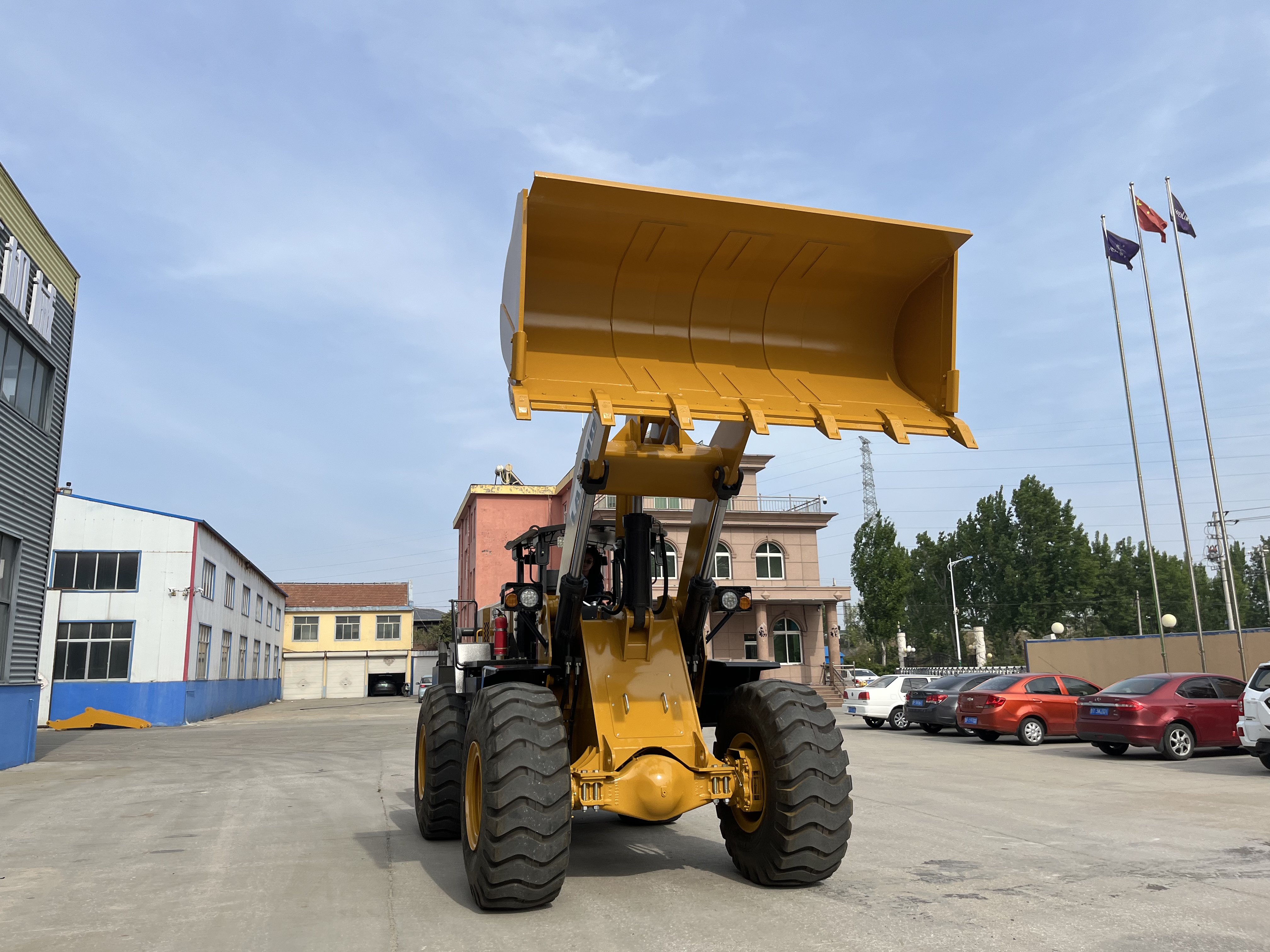

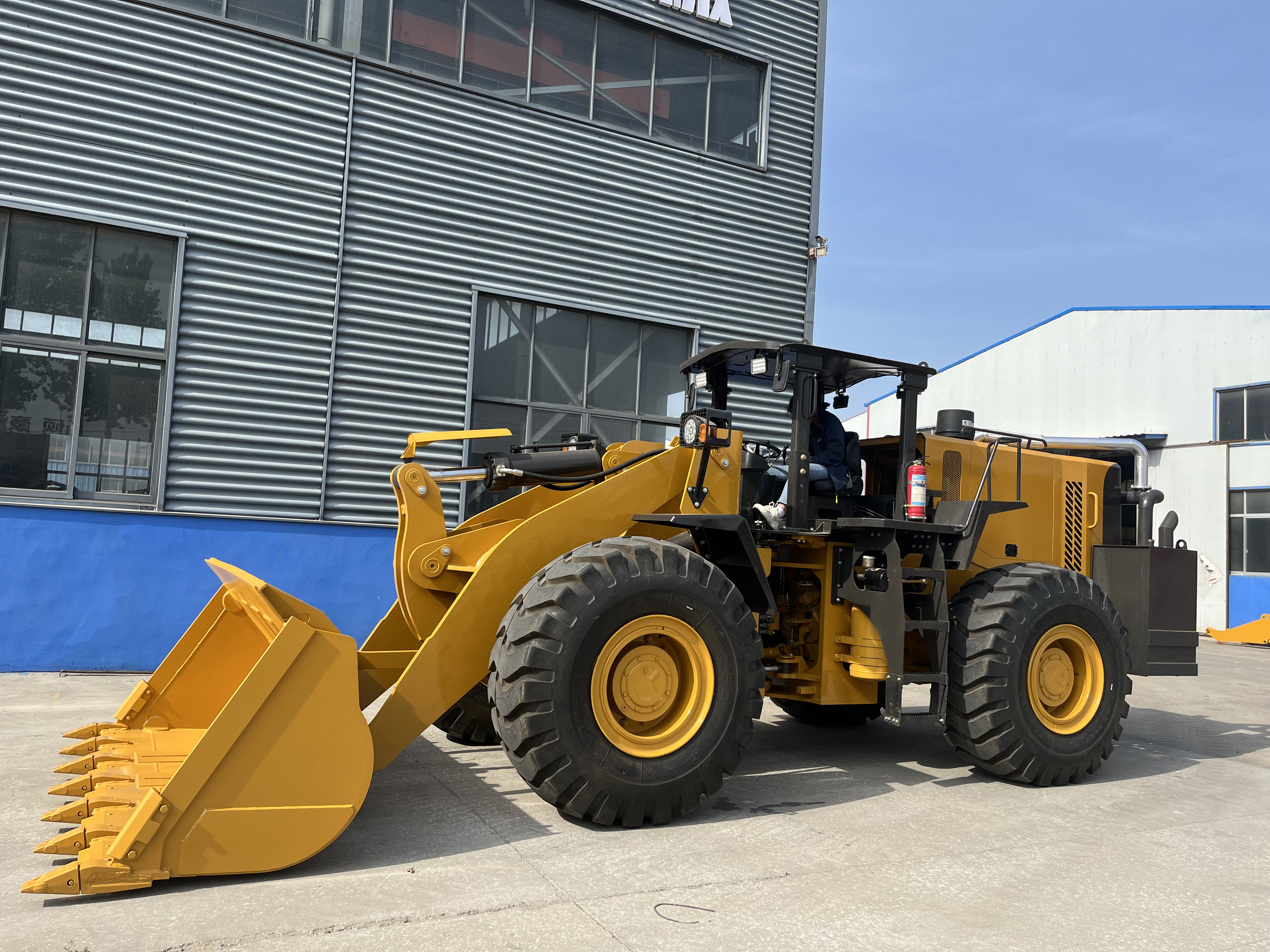

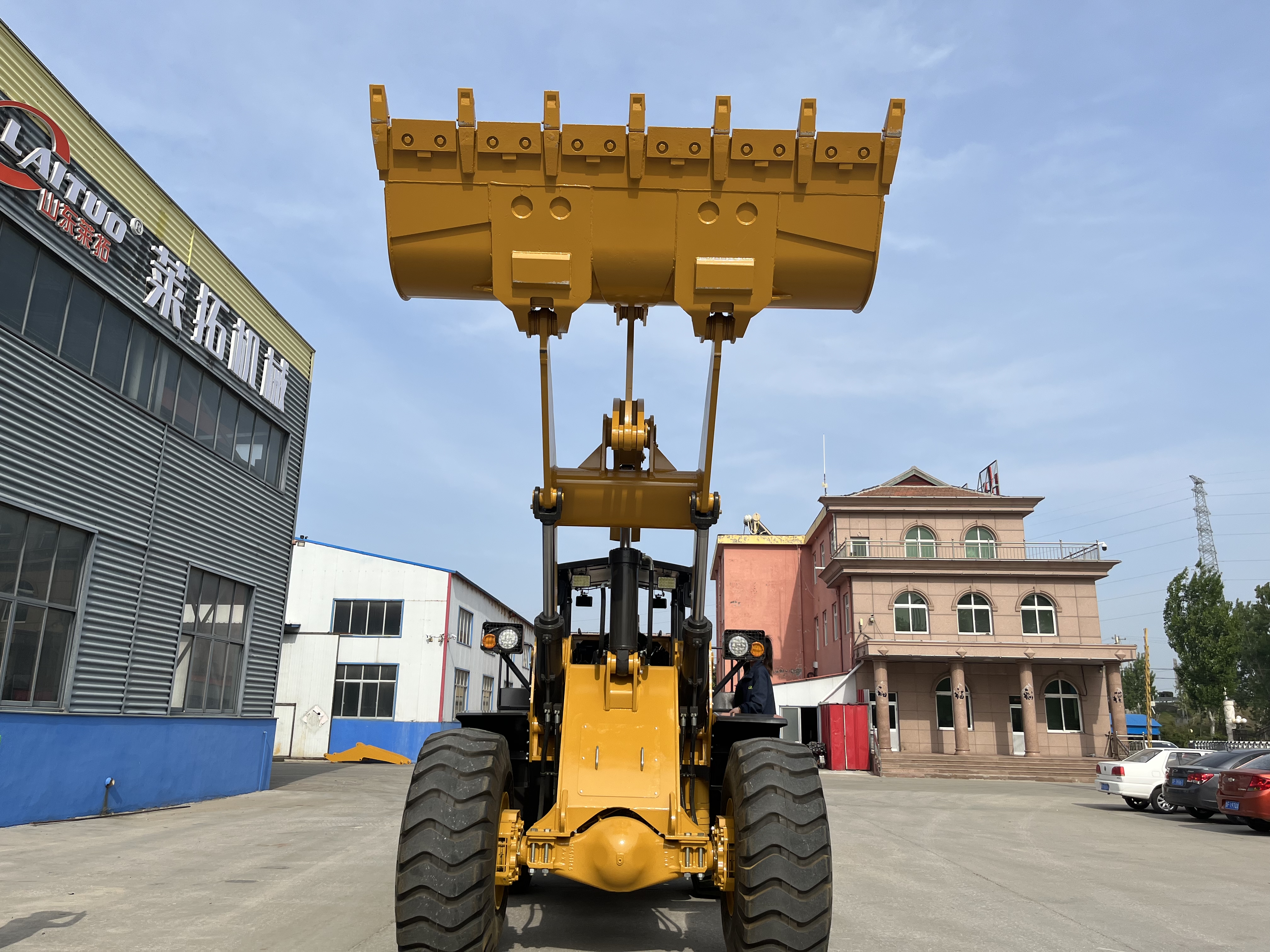

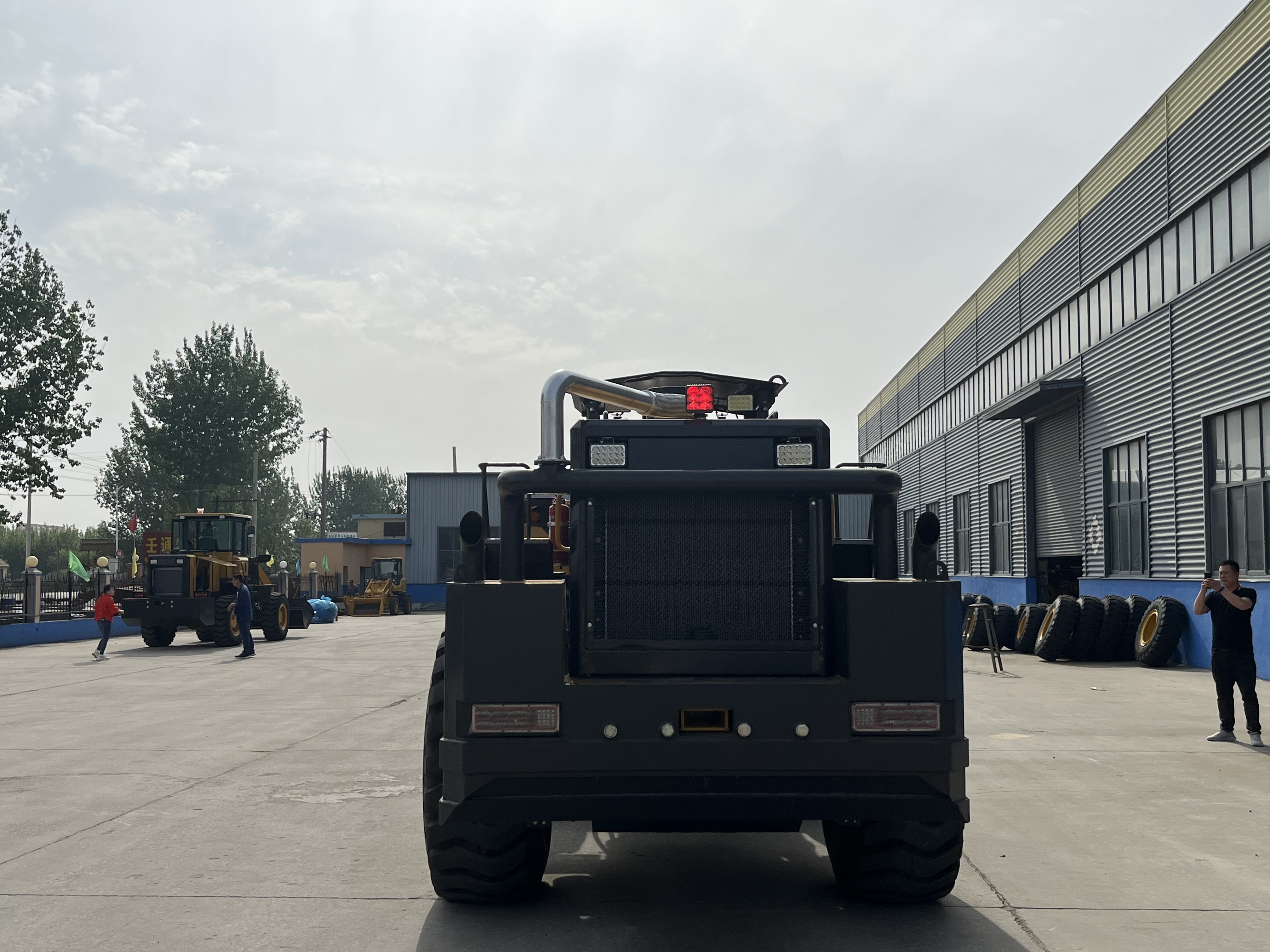

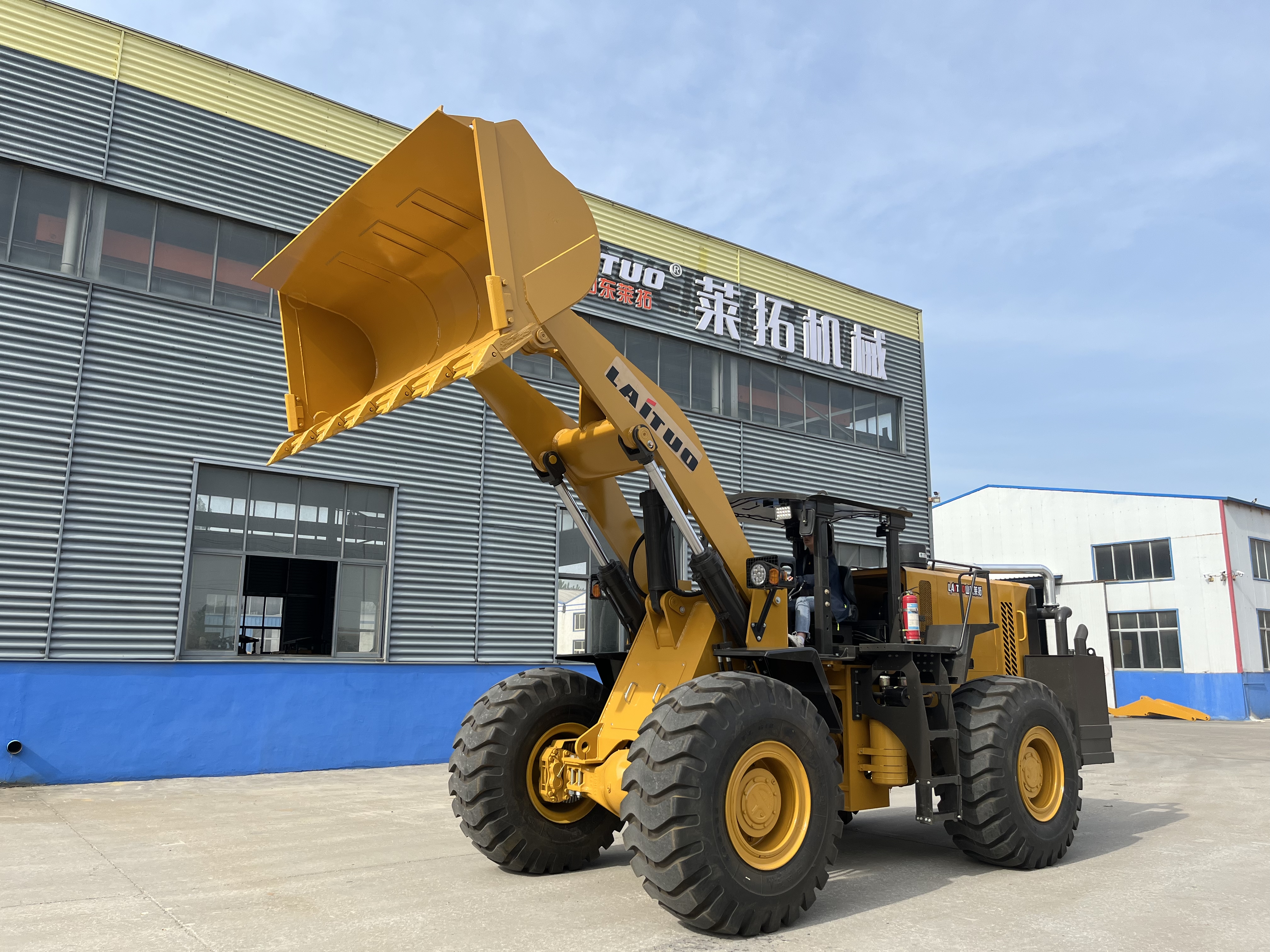

| Model ZL20EFB 标准防爆 | LT928UA（Side dumping） |
| Main specifications | |
| Bucket capacity (m3 ) | 1 |
| Rated load (t) | 2 |
| Weight (t) | 7 |
| Lifting time of the arms (s) | ≤4 |
| The sum of three items(s) | ≤8 |
| Forward gear（km/h） | I 0-5 II 0-13 |
| Reverse gear | I 0-5 II 0-13 |
| Max. climbing gradient | 15° |
| Dimensions | |
| Overall dimension (mm) | 5580×1800×1900 |
| Wheel base (mm) | 2450 |
| Wheel tread(mm) | 1420 |
| Max. dumping height(mm) | 1660 |
| Dumping reach (mm) | 1050 |

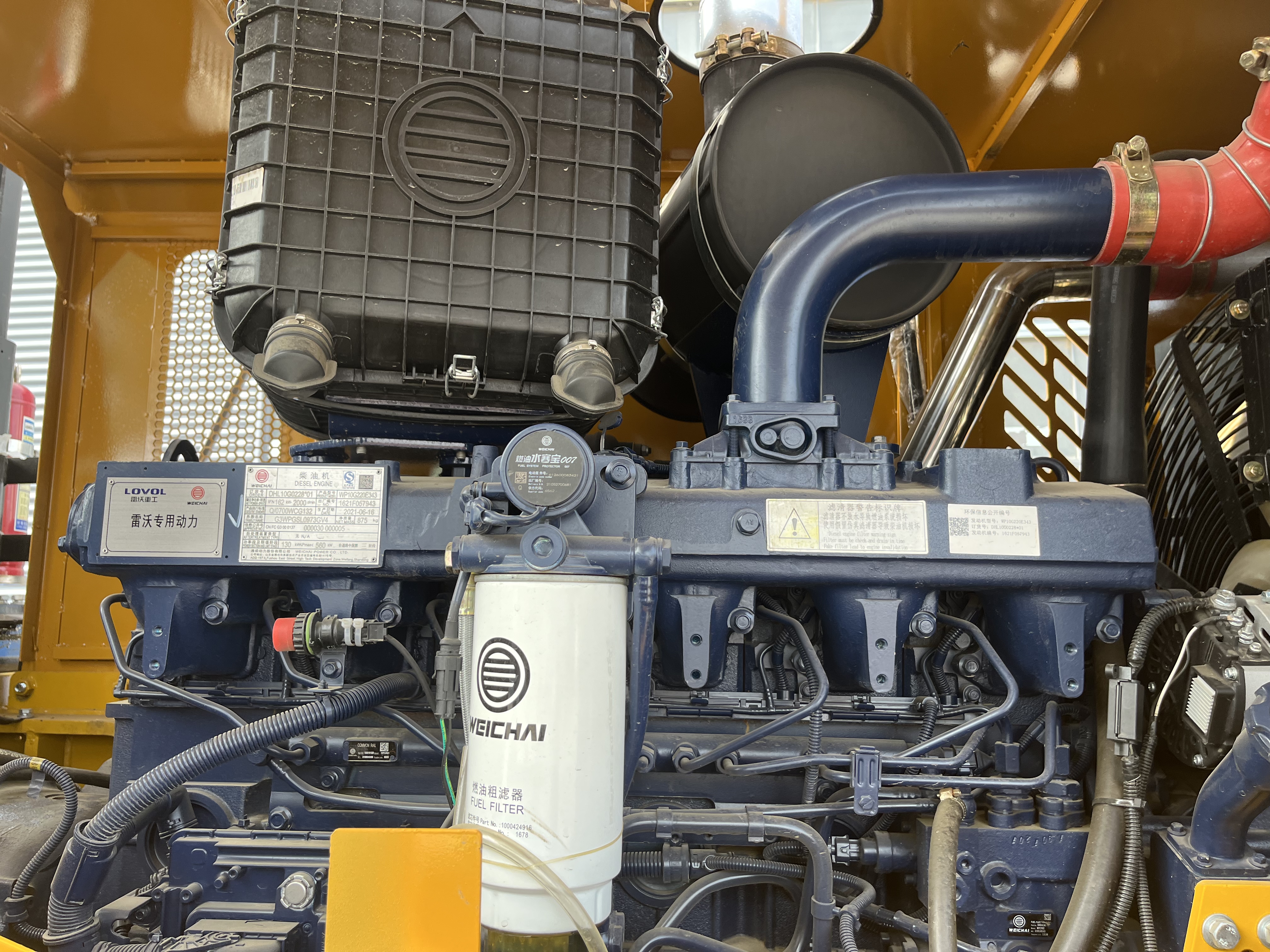

| Diesel engine | |
| Engine model | LR4A3Z-22 |
| Engine type | In-line,water-cooling,4-stroke,4cylinder,direct-injection, turbo |
| Rated power(kw) | 70 |
| Rated speed (r/min) | 2200 |
| Total exhaust of cylinder(L) | 4.2 |
| Type of starting | Electric start |
| Transmission system | |
| Torque converter | |
| Model | YJ280 |
| Type | Single stage, three elements |
| Gearbox | |
| Model | ZL20 |
| Type | Fix counter-shaft, power-shift |
| Axle and tire | |
| Type of main reducer | Spiral bevel gear,single stage |
| Type of final reducer | Single stage planetary |
| Size of tire | 9.75-18 |
| Working device of hydraulic system | |
| Model of working pump | CBGJ2050 |
| Nominal displacement(ml/r) | 50 |
| Rated pressure(Mpa) | 16 |
| Multi-way directional valve | ZL20 |
| Pressure(Mpa) | 17 |
| Rated flow(L/min) | 100 |
| Steering system | |
| Type | Load-sensing hydraulic steering |
| Displacement(ml/r) | 250 |
| Max input pressure(Mpa) | 16 |
| Brake system | |
| Type of traveling brake | Air over hydraulic brake |
| Type of parking brake | Band brake |
