| 1. yto,or cummins turbo engine, SDLT torque converter and gearbox, heavier type driving axles, ratio decreased, traction increased 20%, more powerful and work more efficiently. | |||
| 2. Air over hydraulic brake, 9.75-18 tyre , automatic leveling function. | |||
| 3. Strengthened frame, more robust, tires have high adhesion. | |||

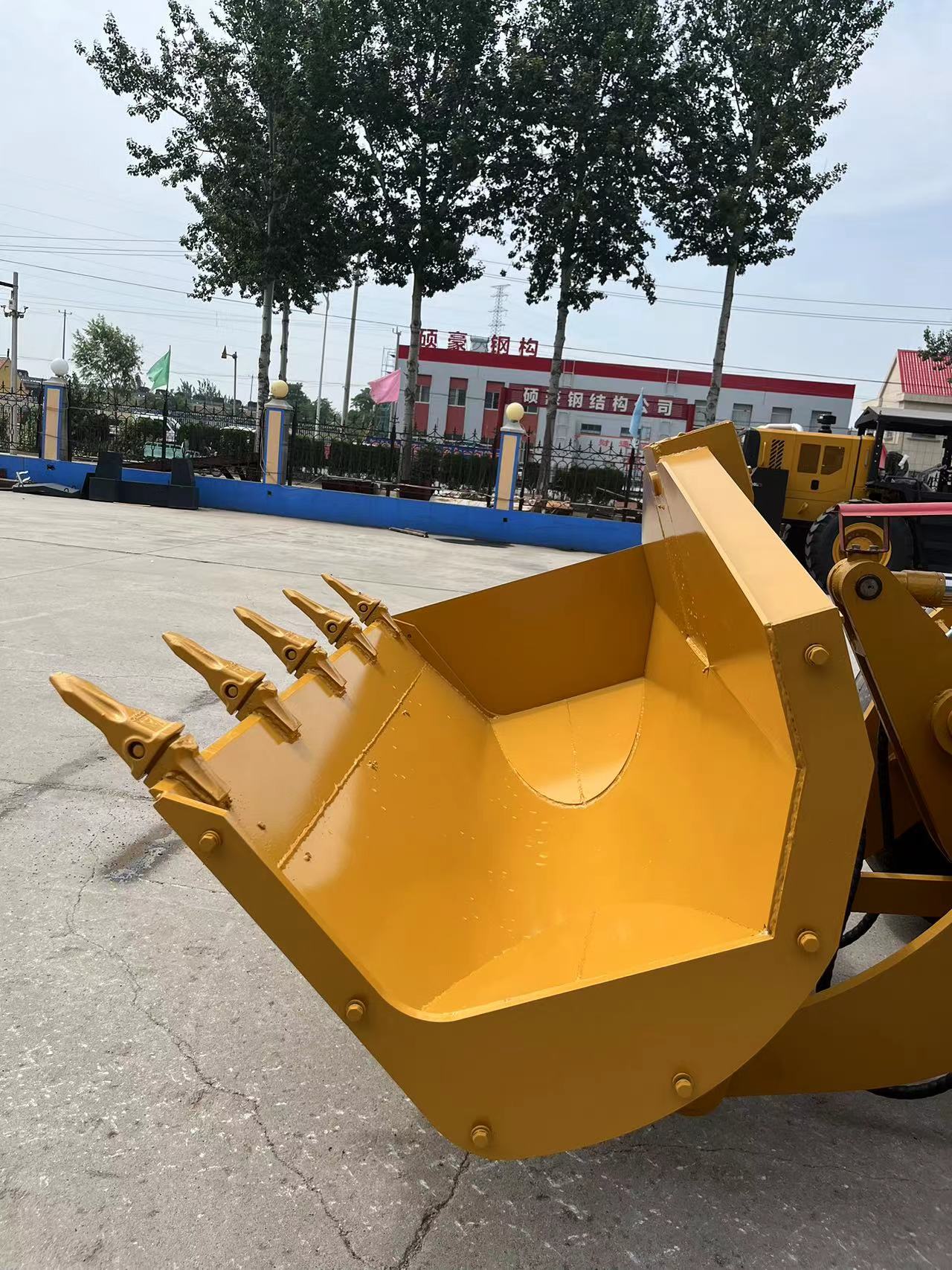

| 4. Bucket motherboard with wear-resistant 400 steel plate made by Wugang, very durable; | |||
| 5. Overall length ≤5.5meters, the whole width ≤1.9 meters, Overall height ≤1.9 meters, more narrower, lower and shorter, suitable for ultra-low, ultra-narrow aisle works. | |||

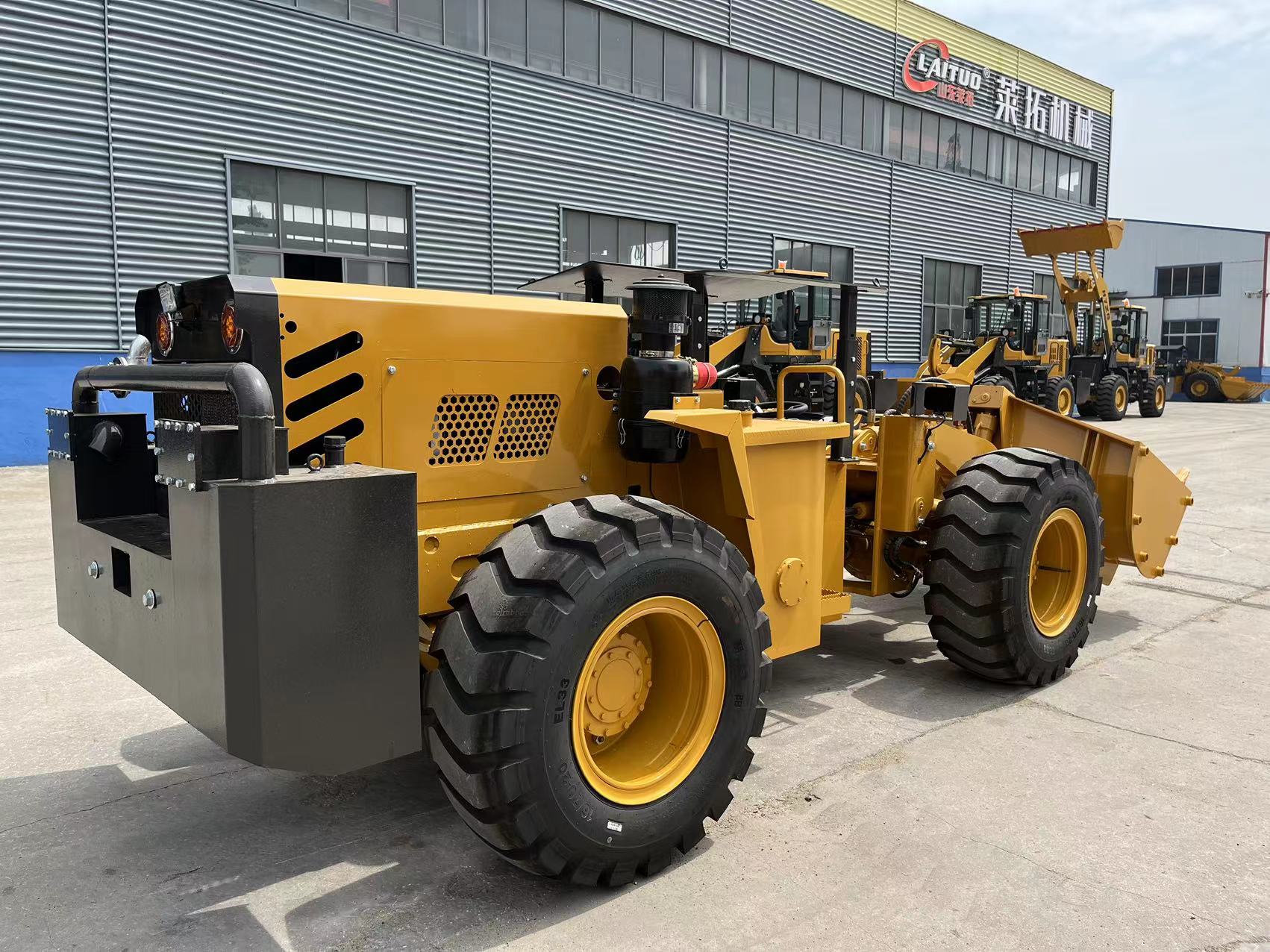

| 6. Standard with exhaust purification device and imported three way catalytic converter ( optional wet brake axle). |

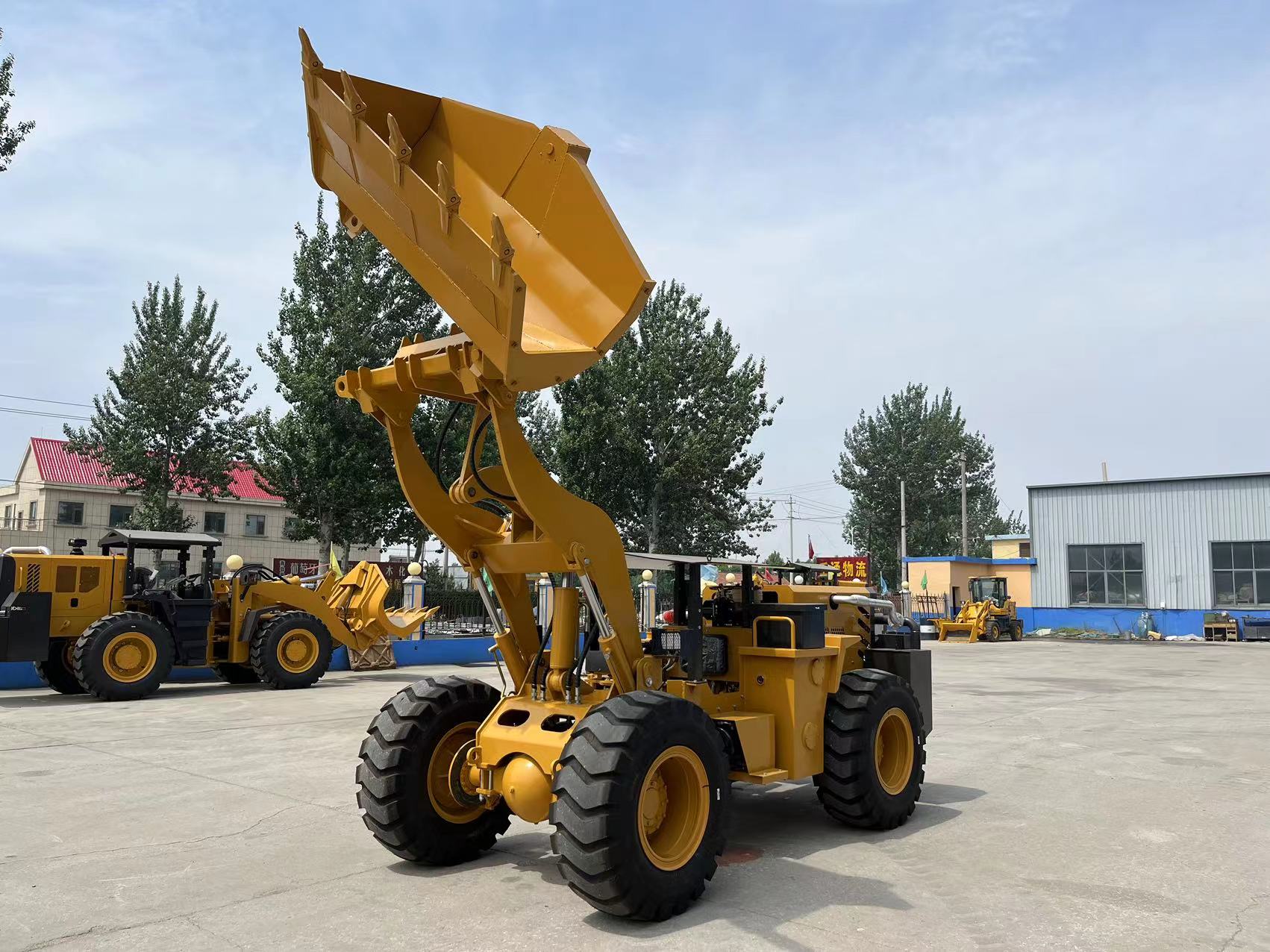

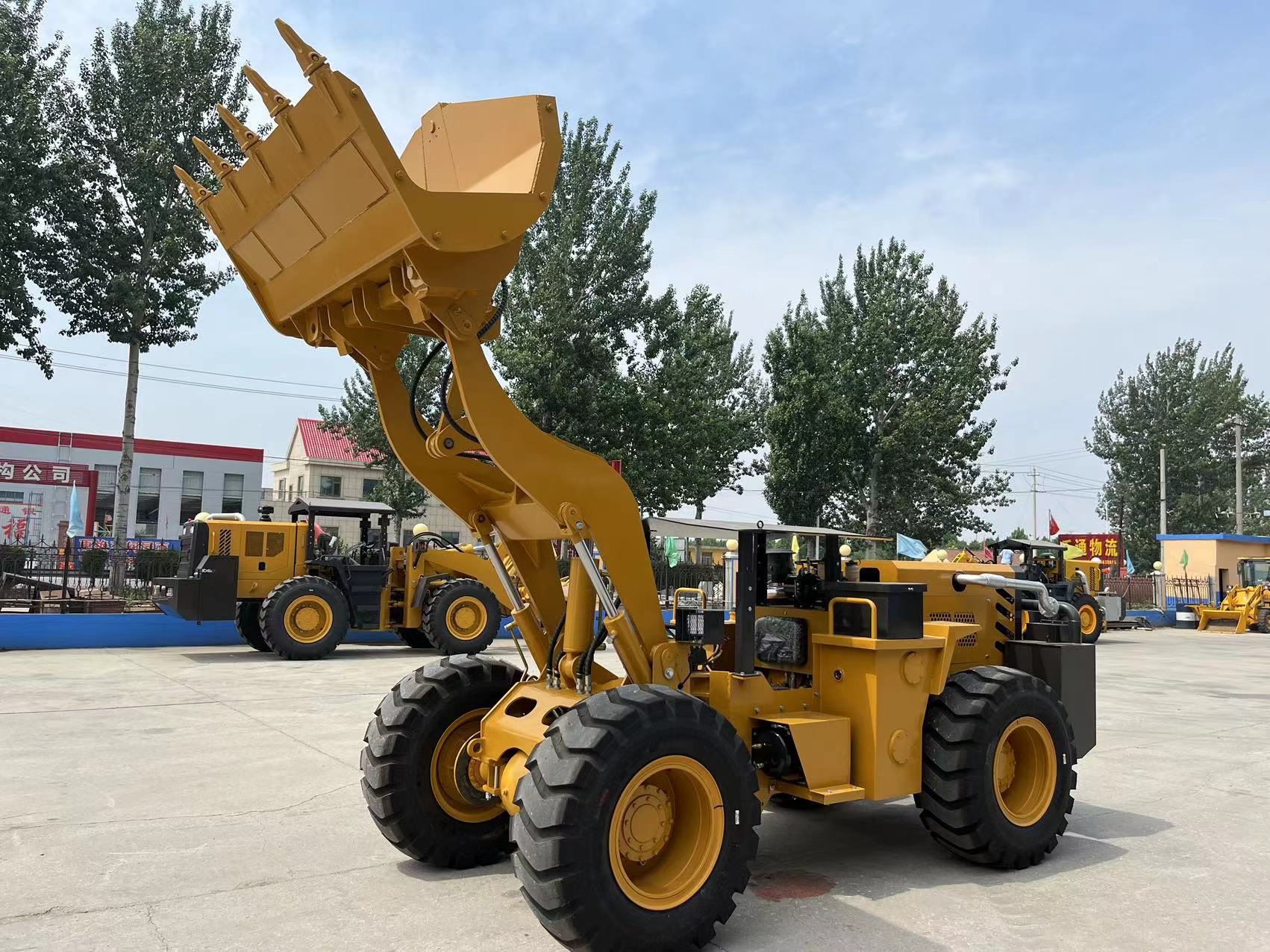

| Model ZL20EC 标准侧卸 | LT928US（Side dumping） |
| Main specifications | |
| Bucket capacity (m3 ) | 1 |
| Rated load (t) | 2 |
| Weight (t) | 6.5 |
| Lifting time of the arms (s) | ≤4 |
| The sum of three items(s) | ≤8 |
| Forward gear（km/h） | I 0-5 II 0-13 |
| Reverse gear | I 0-5 II 0-13 |
| Max. climbing gradient | 15° |
| Dimensions | |
| Overall dimension (mm) | 5500×1870×1810 |
| Wheel base (mm) | 2700 |
| Wheel tread(mm) | 1440 |
| Max. dumping height(mm) | 1540 |
| Dumping reach (mm) | 945 |
| Diesel engine | |
| Engine model | CUMMINS 4BTA3.9-C80 |
| Engine type | In-line, Air-Water cooling, 4-strokes , 4 cylinders,direct-injection, turbo |
| Rated power(kw) | 60 |
| Rated speed (r/min) | 2200 |
| Total exhaust of cylinder(L) | 3.9 |
| Type of starting | Electric start |
| Transmission system | |
| Torque converter | |
| Model | 280 |
| Type | Single stage, three elements |
| Gearbox | |
| Model | AUTOMATIC |
| Type | Fix counter-shaft, power-shift |
| Axle and tire | |
| Type of main reducer | Spiral bevel gear,single stage |
| Type of final reducer | Single stage planetary |
| Size of tire | 15/70-18 |

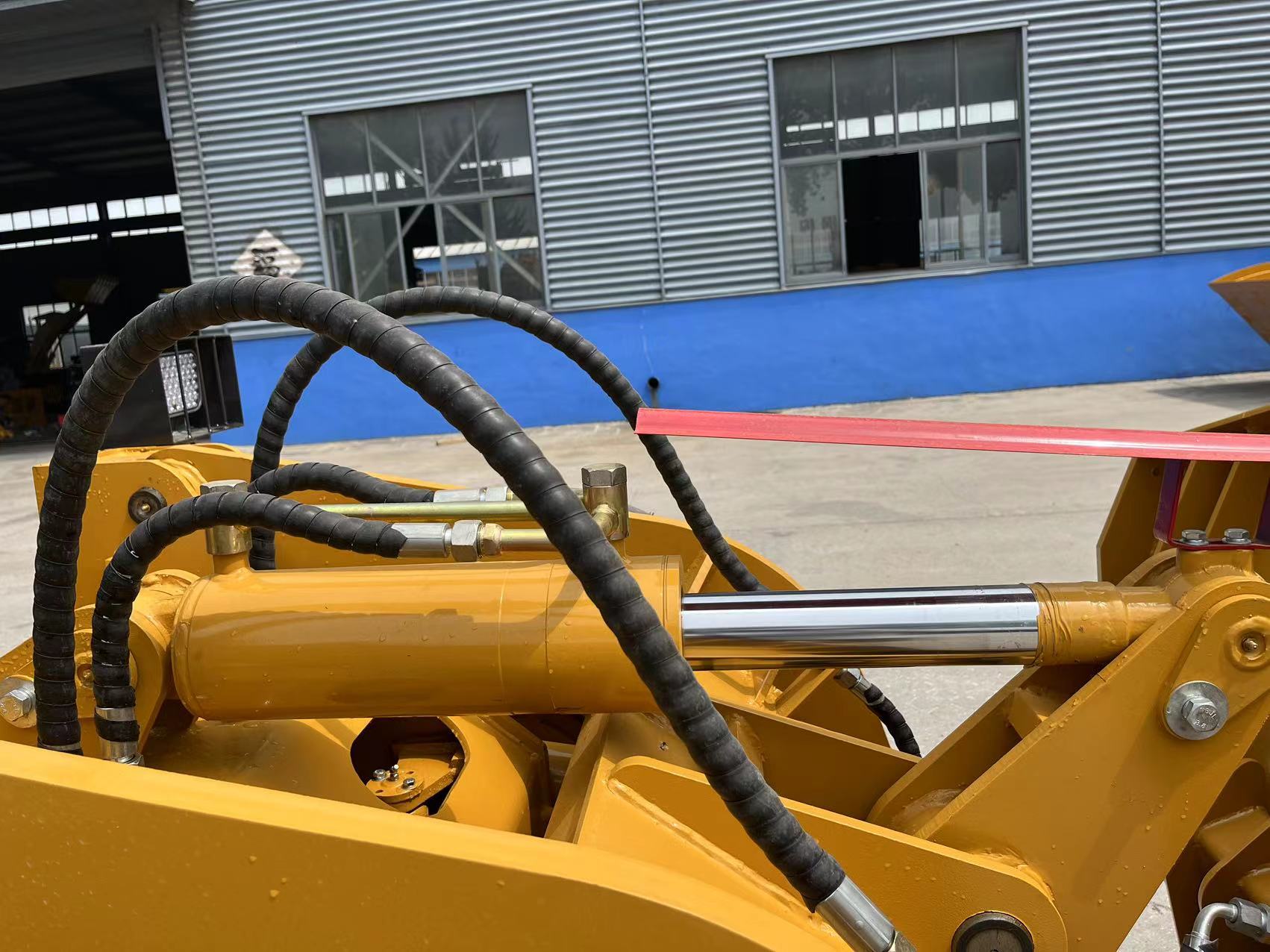

| Working device of hydraulic system | |
| Model of working pump | CBG2063 |
| Nominal displacement(ml/r) | 63 |
| Rated pressure(Mpa) | 16 |
| Multi-way directional valve | ZL20 |
| Pressure(Mpa) | 17 |
| Rated flow(L/min) | 100 |
| Steering system | |
| Type | Load-sensing hydraulic steering |
| Displacement(ml/r) | 250 |
| Max input pressure(Mpa) | 16 |
| Brake system | |

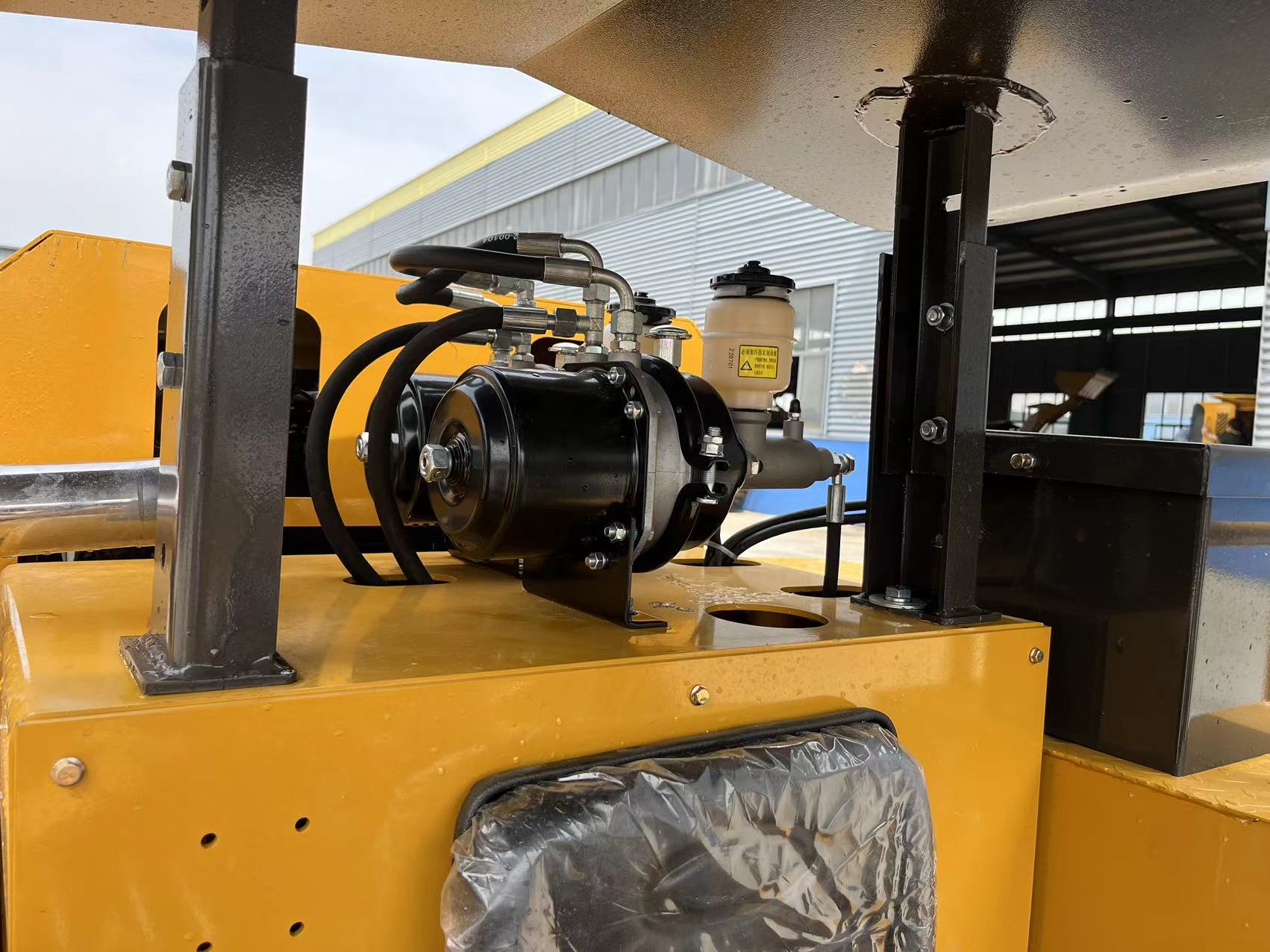

| Type of traveling break | Air over hydraulic brake |
| Type of parking break | Band brake |
