DEUTZ BF4M1013EC Power system, water-cooled, and turbocharged engine.
DANA Transmission system, hydraulic torque converter and power-shift gearbox, which is easy to operate and stable to operate.
Spring brake and hydraulic release in the brake system, which is safe and reliable.
Canadian ECS platinum catalytic purifier with a silencer, which greatly reduces the air and noise pollution in the working tunnel.
|
Bucket |
6m3 |
|
Capacity |
12000kg |
|

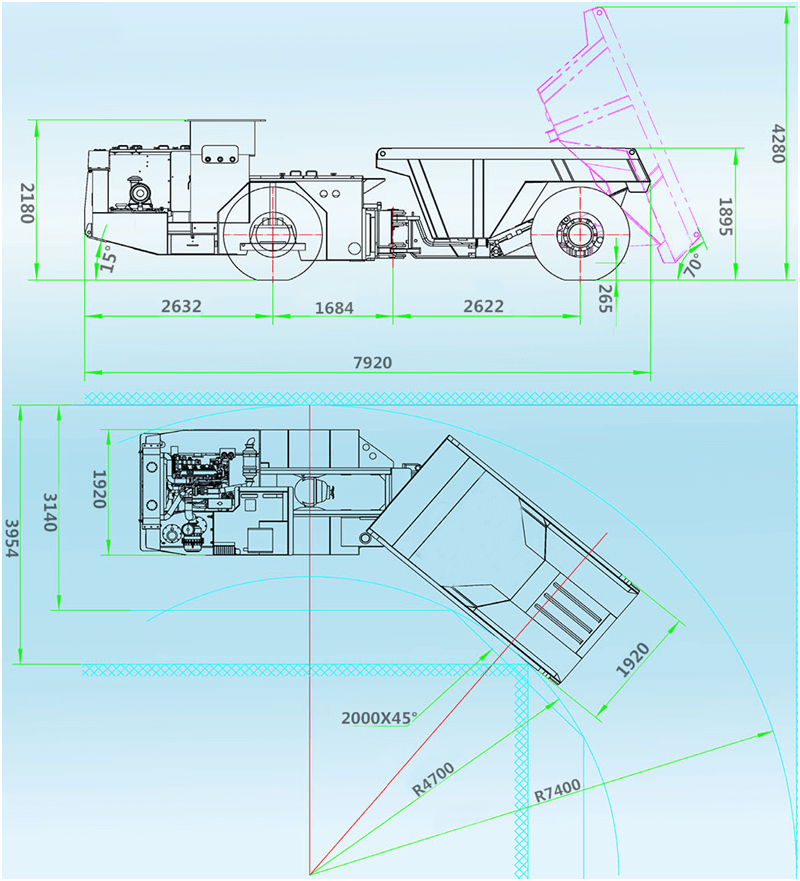

Unloading Height |
4280mm |
Min. Ground Clearance |
320mm |
|
|
Oscilation Angle |
±8° |
Turning Radius |
4700 / 7400 |
|
|
Speed |
0-23km/h |
Climing Ability |
20° |
|
|
Traction |
143KN |
Weight |
13800kg |
Main Configuration
Engine：Deutz BF4M1013EC / 115kw / 2300rpm
Torque Converter：DANA C270
Transmission：DANA RT32000
Axle：Rigid Planetary Drive Axle
Hydraulic Pump：Duplex Gear Pump
Multiway Valve：USA PARKER
