. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.
2. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.
5. Load sensing fully hydraulic steering system makes operation easy.
6. Air over hydraulic brake system; Caliper disc brakes.
7. Working device with automatically leveling ability at high position.
8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

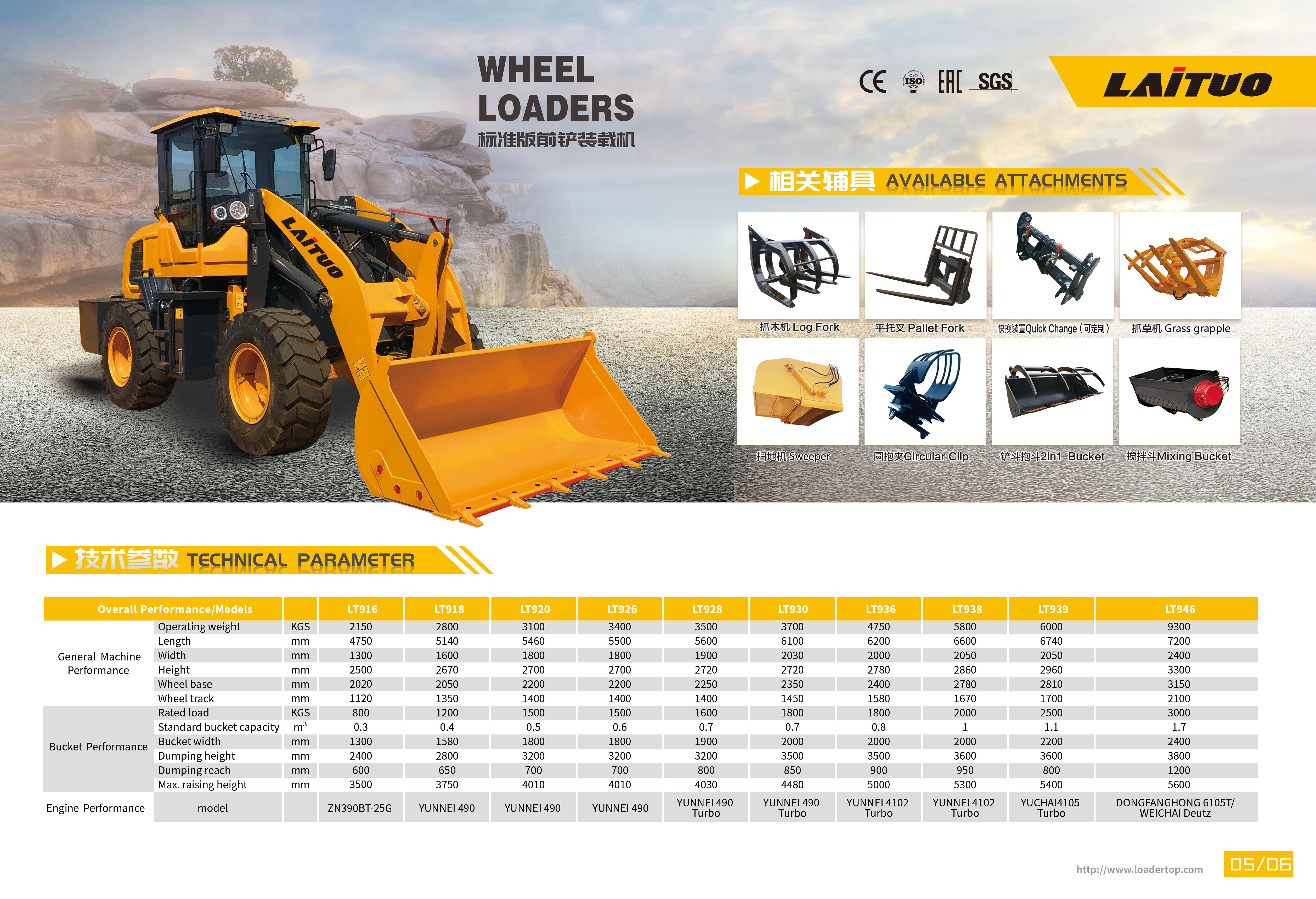

| 型号Model | LT920 |
| 操作重量 Operating weight | 3600kg |
| 额定载荷 Rated load | 1500kg |
| 铲斗容量 Bucket capacity | 0.8m³ |
| 发动机型号 Engine Model | yunnei / xinchai/Kubota/Cummins |
| 额定功率 Rated power | 42KW |
| 外形尺寸 Overall dimension (LxWxH) | 5325*1825*2700mm |
| 最小转弯半径 Minimum Turning Radius | 3750mm |
| 最大卸载高度 Max Dumping height | 2900mm |
| 最大卸载距离 Max Dumping reach | 1000mm |
| 档位 Gear shift | 2 forward 2 reverse |
| 轮胎尺寸 Tire size | 20.5--16 |
| 操作类型 Operating type | Mechanical single joystick |
| 可选配置 Optional configuration | Air conditioner rearview camera etc. |
| 可选属具 Optional attachment | Quick hitch fork log grapple etc. |
if there is any doubt the specific confirmation of our international trade sales shall prevail;
