E30LC 3.0TON EXCAVATOR Excavators
  • Bucket Capacity: 0.10CBM
  • Operating Weight: 2880KGS
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics
Equipped with Lengthening arm, meeting different demands in various jobs
With hydraulic pilot, easy and safe operation
Steel track, enhance the wear resistance of the crawler and prolong the service life of the crawler
Famous brand engine, strong power, small noise, low emission, low fuel consumption and convenient maintenance
The rear cover adopts an openable type, which is convenient for customer maintenance.
Both rotation and walking adopt imported Eaton system, with reliable quality, stable performance and strong adaptability to working conditions
Duplex speed walking.
Plunger pump + load sensing valve, user friendly design.
parameters
Model  E30
E30LC.9
Operating Weight
3,000 kg
Digging Bucket Capacity
0.1 m³
Bucket Width
450 mm
Travel Speed
0 - 4.5 km/h
Gradeability
35°
Roof
Yes
Tool Kit
Yes
Warranty
2 Year
Engine

Brand
LAIDONG LL385B
Rated power
22 kw (30 hp)
Type
Diesel, 3-Cylinder, 4-Stroke, Water-cooled
Starting System
Electrical
Main Dimensions

Overall Dimension (L * W * H)
4,400 * 1,300 * 2,300 mm
Track Length
1,850 mm
Min. Ground Clearance
385 mm
Min. Turning Radius
1,900 mm
Chassis Width
1,300 mm
Operatring Performance

Max. Digging Depth
2,500 mm
Max. Vertical Digging Depth
2,350 mm
Max. Digging Height
3,850 mm
Max. Dumping Height
2,600 mm
Max. Digging Radius on Ground
4,100 mm
Max. Lifting Height of Bulldozer Blade
325 mm
Max. Digging Depth of Bulldozer Blade
210 mm

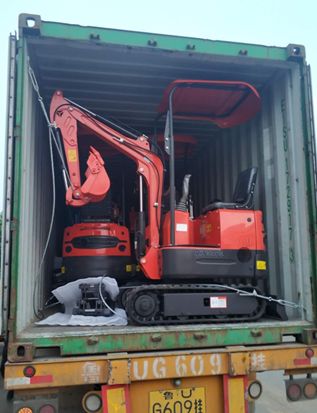

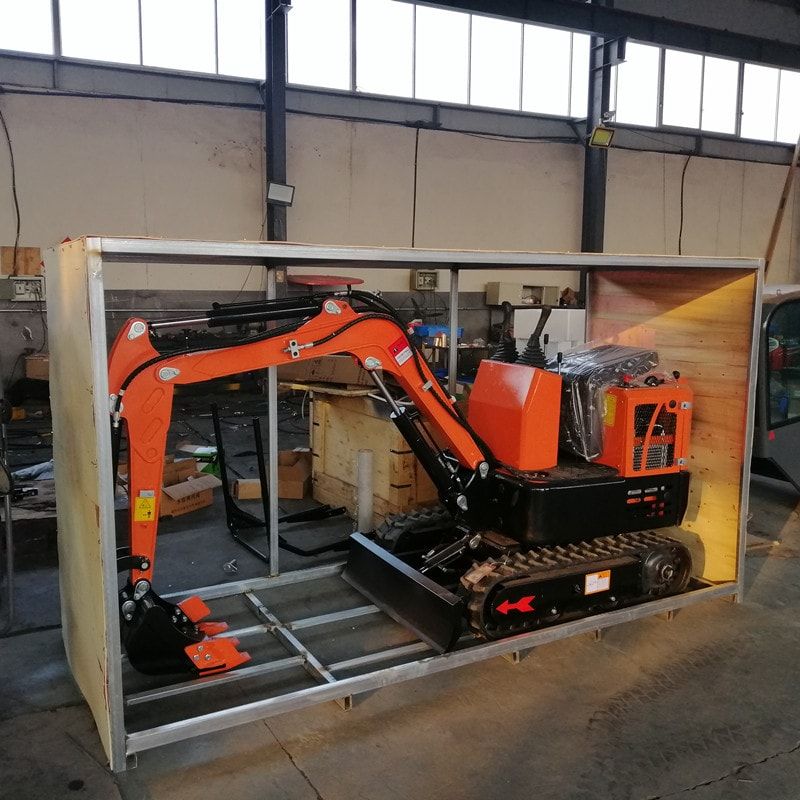

cases
